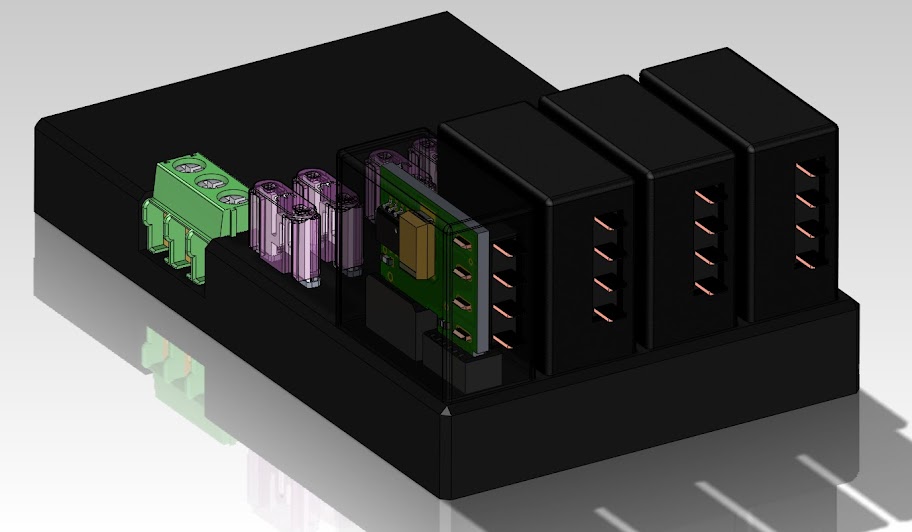

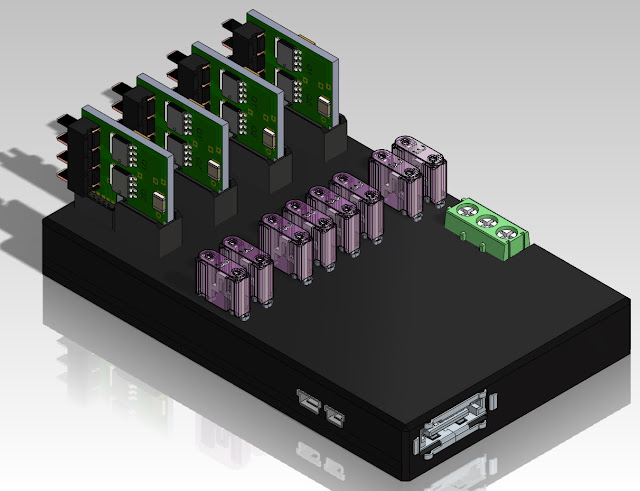

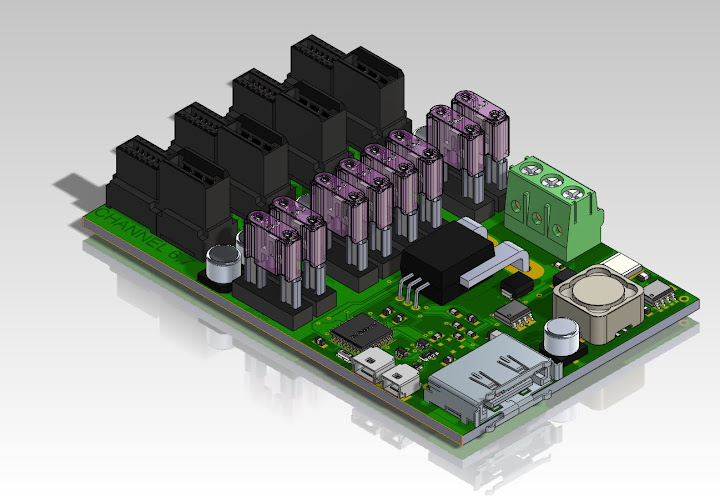

Full power tests of motorcycle PDU

I pushed 185 watts through my custom DC relays last night. They ate up that power like a champ. Likewise, I've also been testing it in the off condition to measure its steady off power consumption. The cards burn 150 nano amps or 1.8uW when off. That's means it's about 80 mega ohms which is OUTSTANDING. This project is really moving along nicely. I have some serious burn in testing to do and then it's time to get the main board encapsulated and do some real life testing. That's going to be fun!

Comments

A Capacitive-Touch Janko Keyboard: What I Did at the 2017 Georgia Tech Moog Hackathon

Last weekend (February 10-12, 2017) I made a Janko-layout capacitive-touch keyboard for the Moog Werkstatt at the Georgia Tech Moog Hackathon. The day after (Monday the 13th), I made this short video of the keyboard being played: "Capacitive Touch Janko Keyboard for Moog Werkstatt" (Text from the video doobly doo) This is a Janko-layout touch keyboard I made at the 2017 Moog Hackathon at Georgia Tech, February 10-12. I'm playing a few classic bass and melody lines from popular and classic tunes. I only have one octave (13 notes) connected so far. The capacitive touch sensors use MPR121 capacitive-touch chips, on breakout boards from Adafruit (Moog Hackathon sponsor Sparkfun makes a similar board for the same chip). The example code from Adafruit was modified to read four boards (using the Adafruit library and making four sensor objects and initializing each to one of the four I2C addresses is remarkably easy for anyone with moderate familiarity with C++), and ...

Onboard Firmware of the Human Brain

Freesiders are continually tinkering with robotics and other such machinery . Many of these embedded processors and firmware are becoming open source and every-more diversified in the wake of the modern Maker movement . One notable boost to the hackerspace arsenal is the Arduino (an like platforms). This offers designers an incredible power to devise not just individual devices but even the emergence of complex, integrated systems . This evolutionary pace of modern technological systems may be significantly faster the biologic system development, but there may be a few well learned tricks yet to be mastered. It seems that studying how nature has managed to solve many development challenges will aid in designing robotics, where efficiently counts just as much. One challenge, that is particularly interesting, is data processing. Artificial intelligence is labored with processing data and producing a meaningful and useful output. When consid...

Freesiders Hackers Collaborate in Medical / Surgical Research

Published in the May issue of the Journal of Foot and Ankle Surgery : " A Novel Combination of Printed 3-Dimensional Anatomic Templates and Computer-assisted Surgical Simulation for Virtual Preoperative Planning in Charcot Foot Reconstruction ." This collaboration of specialties represents an undertaking by members of Freeside Atlanta , Southern Arizona Limb Salvage Alliance , and The Podiatry Institute . Charcot foot reconstruction remains on of the most challenging procedures in foot and ankle surgery. These procedures are often lengthy procedures which can be riddled with complications. With the help of Freeside Atlanta Members, institutional researchers used open source Osirix Image viewer and 3D Software such as Newtek's Lightwave or Blender to create simulated surgical reductions as well as 3D printed templates. Freeside Atlanta members assisted in providing 3D printing solutions and know-how to the project. Experimental test prints were done on a M...
